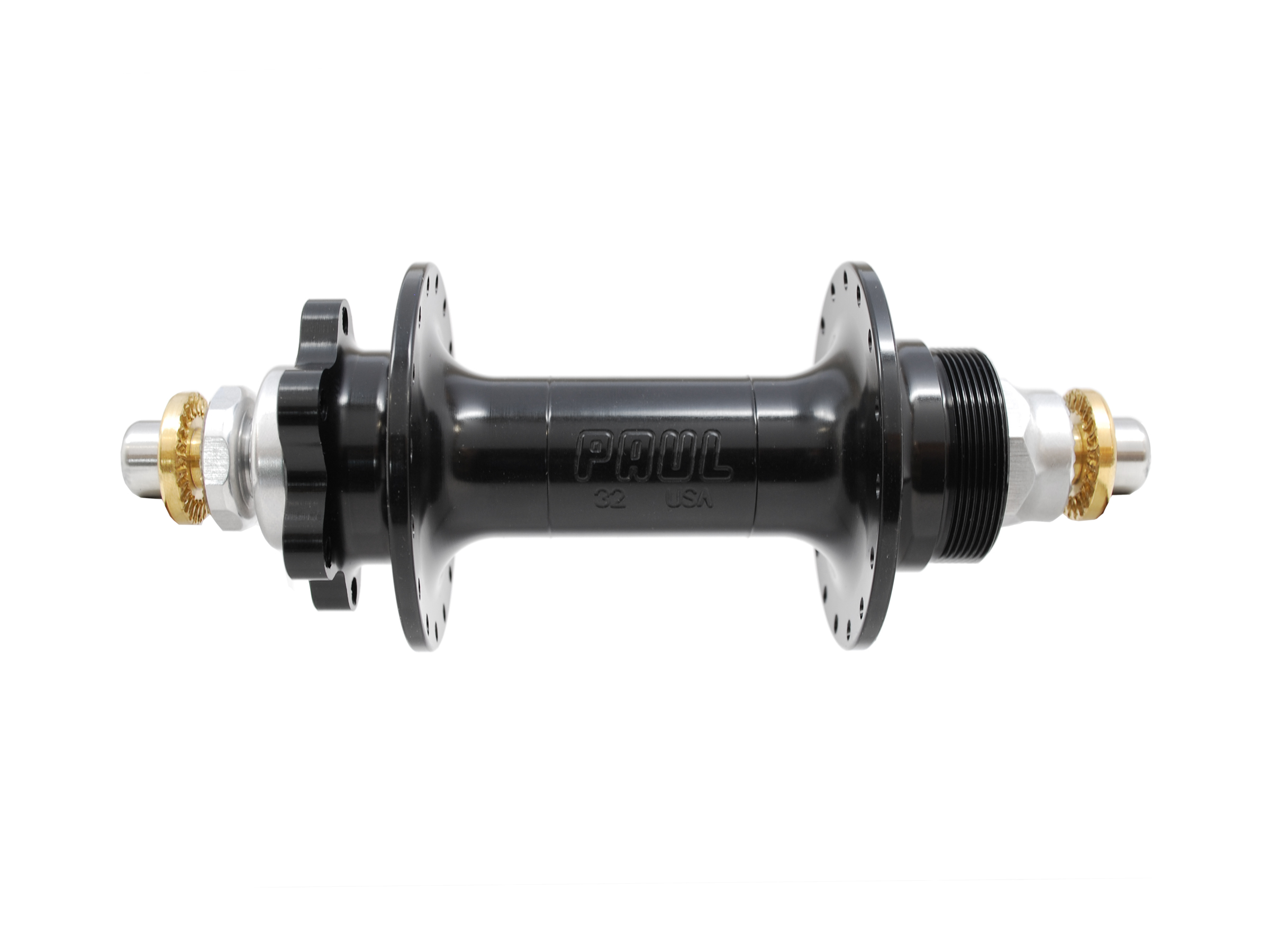

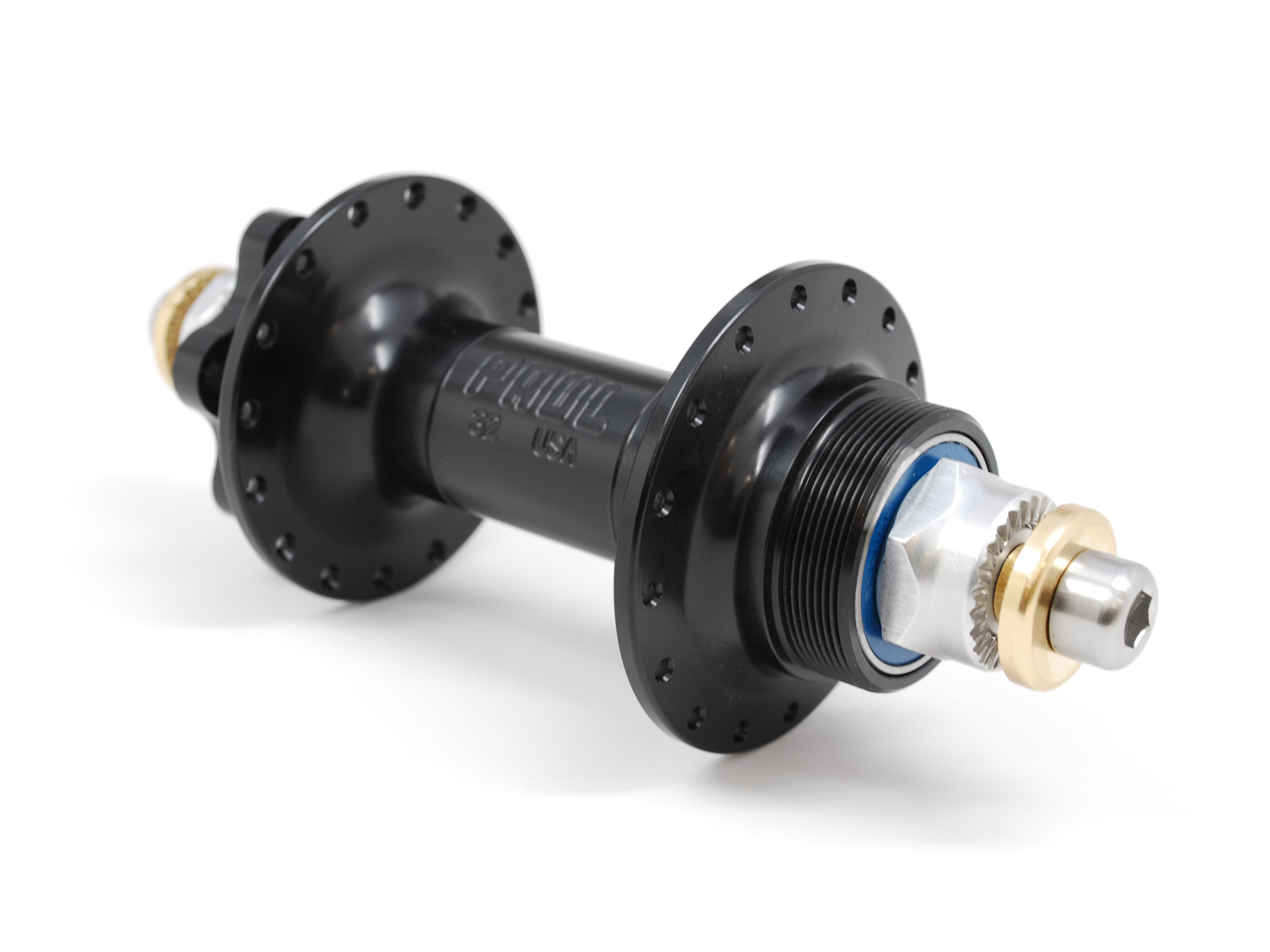

Disk WORD

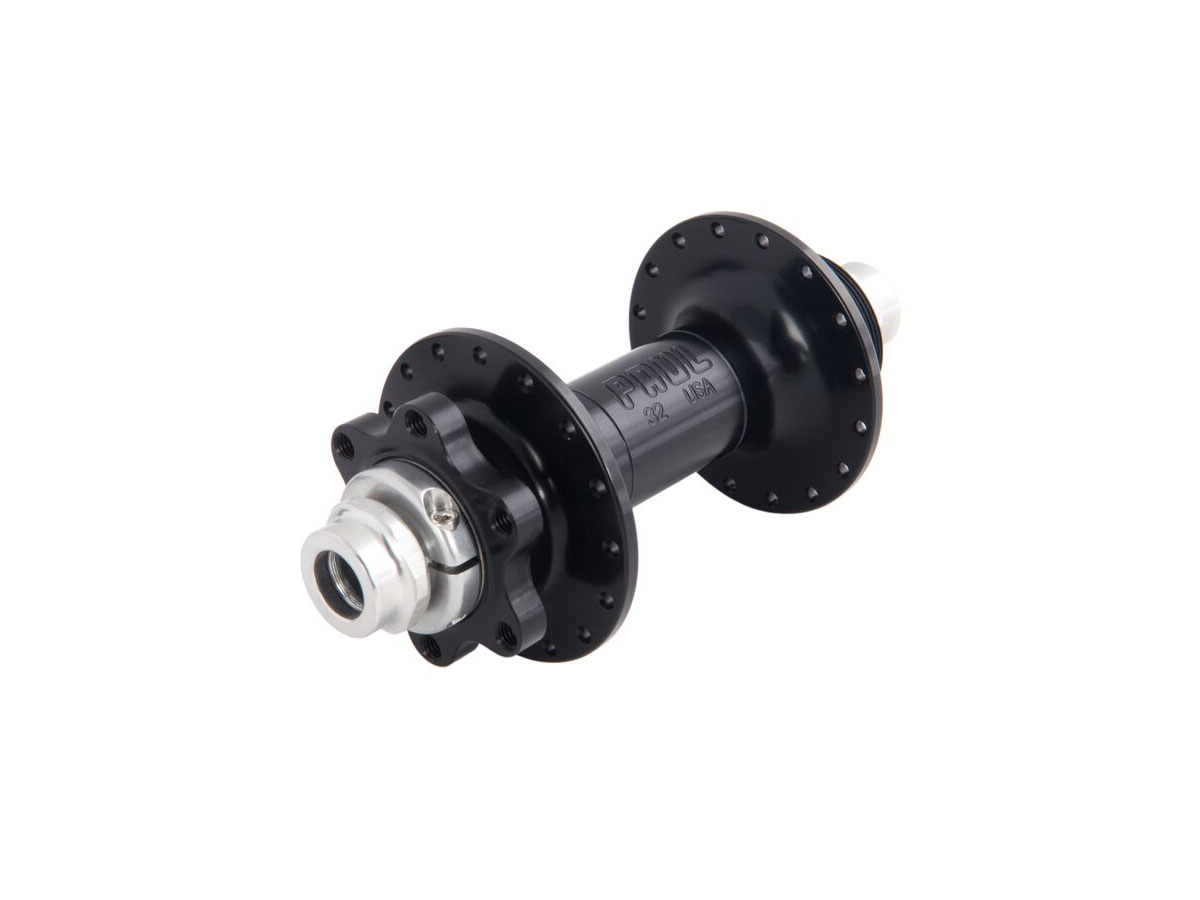

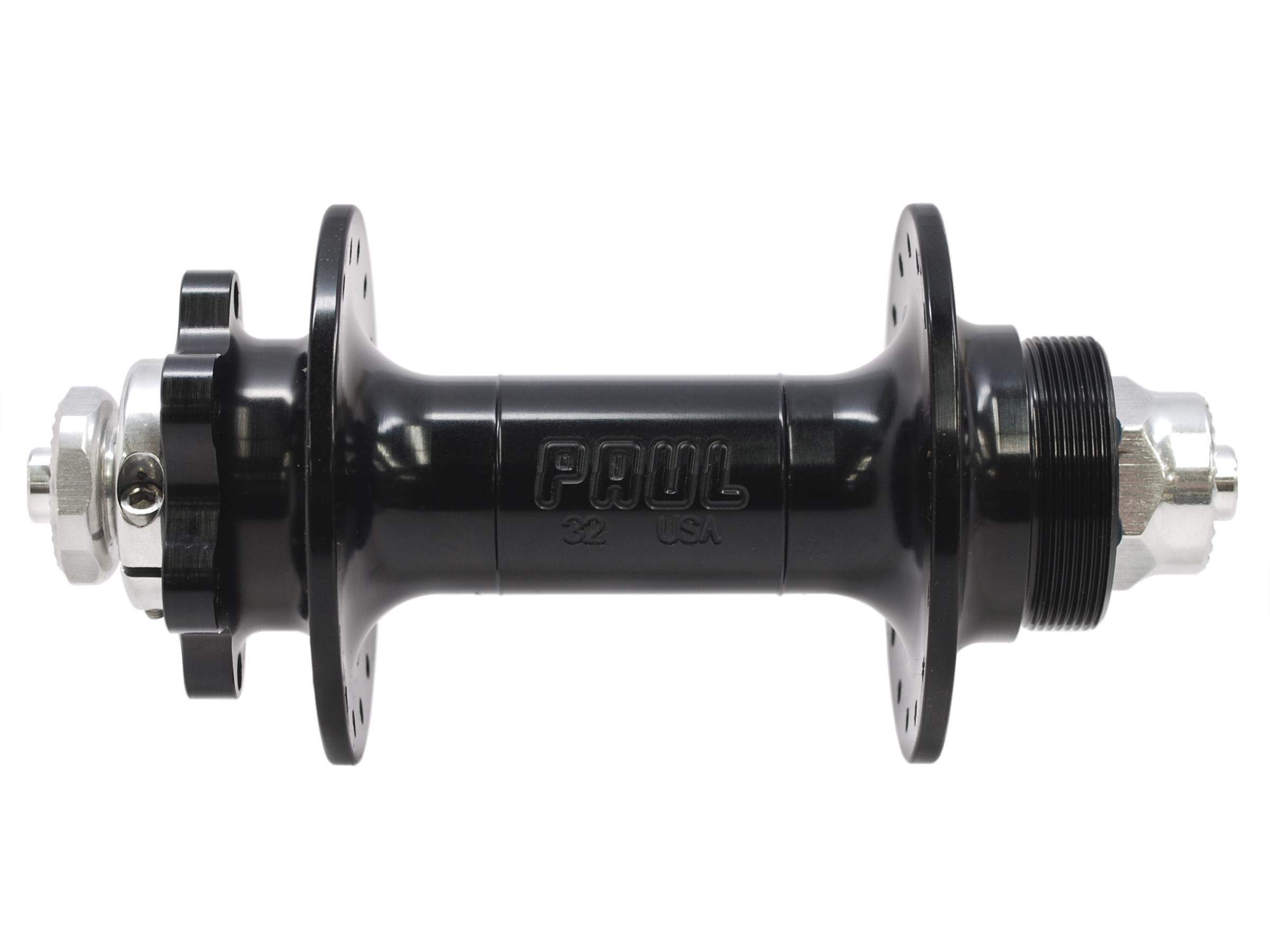

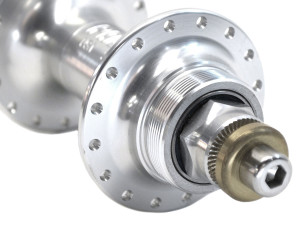

Our Disc WORD Hub can be selected with one of three different super-stiff, super-light, flex-free 7075 Alloy interchangeable axle configurations: Quick-Release, Bolt-On, and Thru-Axle. Easily serviced and made right here in Chico, California, these hubs will last you a lifetime.
$204.50 – $224.50
Technical Information
-
Material6061 Aluminum
-
Weight12mm Thru-Axle Version: 214g
Quick Release Version: 225g
Bolt-On Version (Including Bolts): 273g -

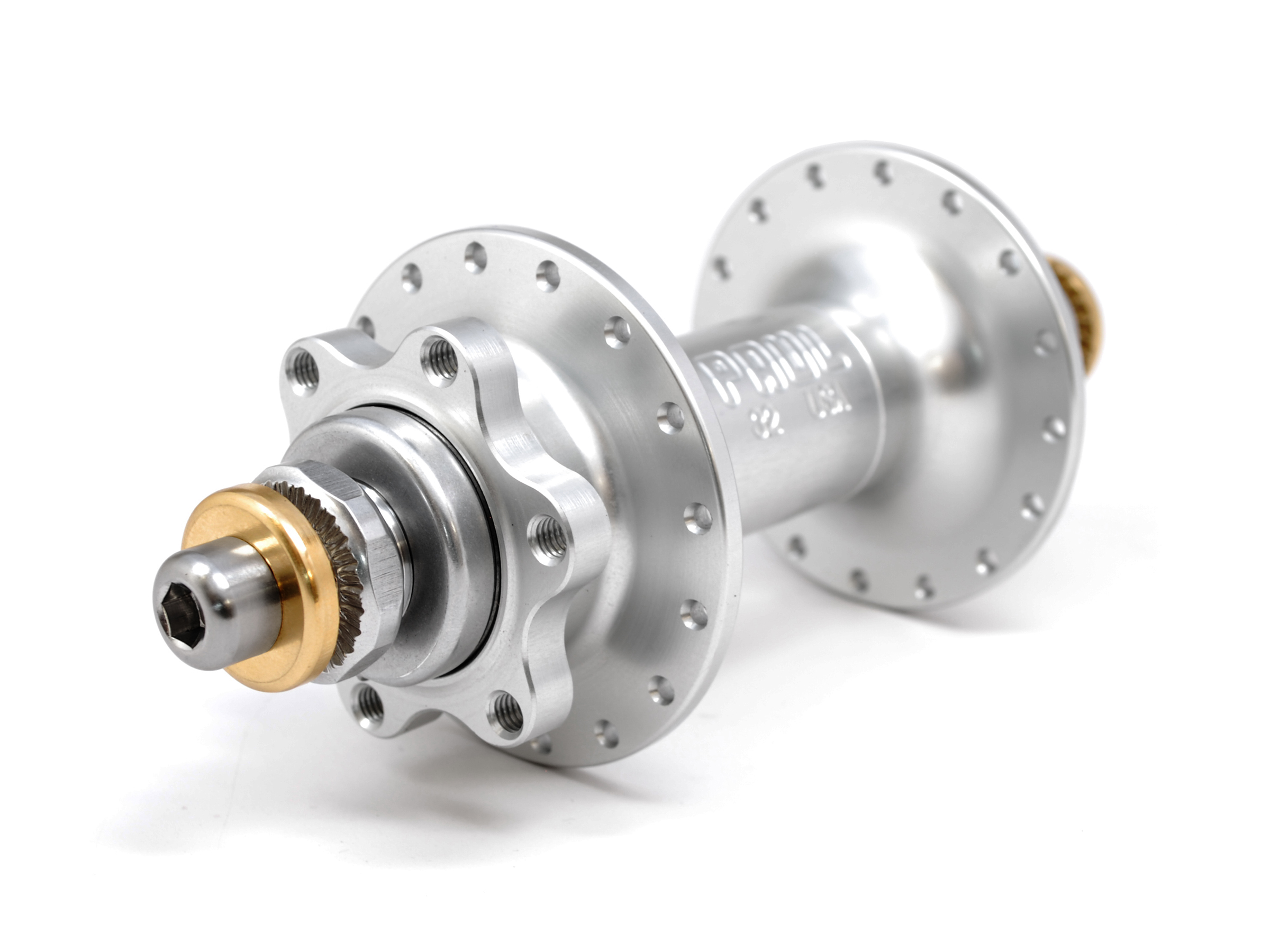

FinishAnodized or Polished
-
Anodized ColorBlack or Silver
-
DimensionsAxle Spacing: 135mm or 142mm
Flange Diameter: 56mm
Center to Flange: 34mm
Chainline: 52mm -
Spoke Holes24, 28, 32 or 36
-
Spoke Hole Diameter2.5mm
-
Freewheel ThreadingEnglish 1.37x24tpi
-
Additional Information
-
Axle Bolt Torque21 N·m
Product Story
This is the latest version of the very first single-speed specific MTB hub ever produced by us back in 1996. “W.O.R.D.” stood for Wacky One Speed Rear Device, because at a time when most riders had just upgraded from 7 to 8 speeds, the idea of stripping all the derailleurs off of your bike to make a super simple, reliable, harder-to-ride bike seemed like a pretty stubborn and a little crazy idea. Since then it has become a cult classic.
Yes, this hub spins very smoothly due to extremely high tolerance machined bearing bores (.0002″, that’s 8 times thinner than a human hair!), high quality user-adjustable sealed cartridge bearings, and a hub shell design that has been refined over years of production and real world abuse to be as light as possible while still withstanding the abuse that the biggest, most reckless riders can put it through.

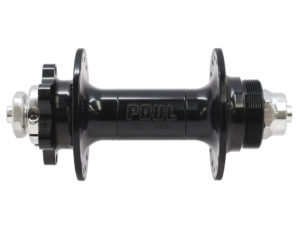

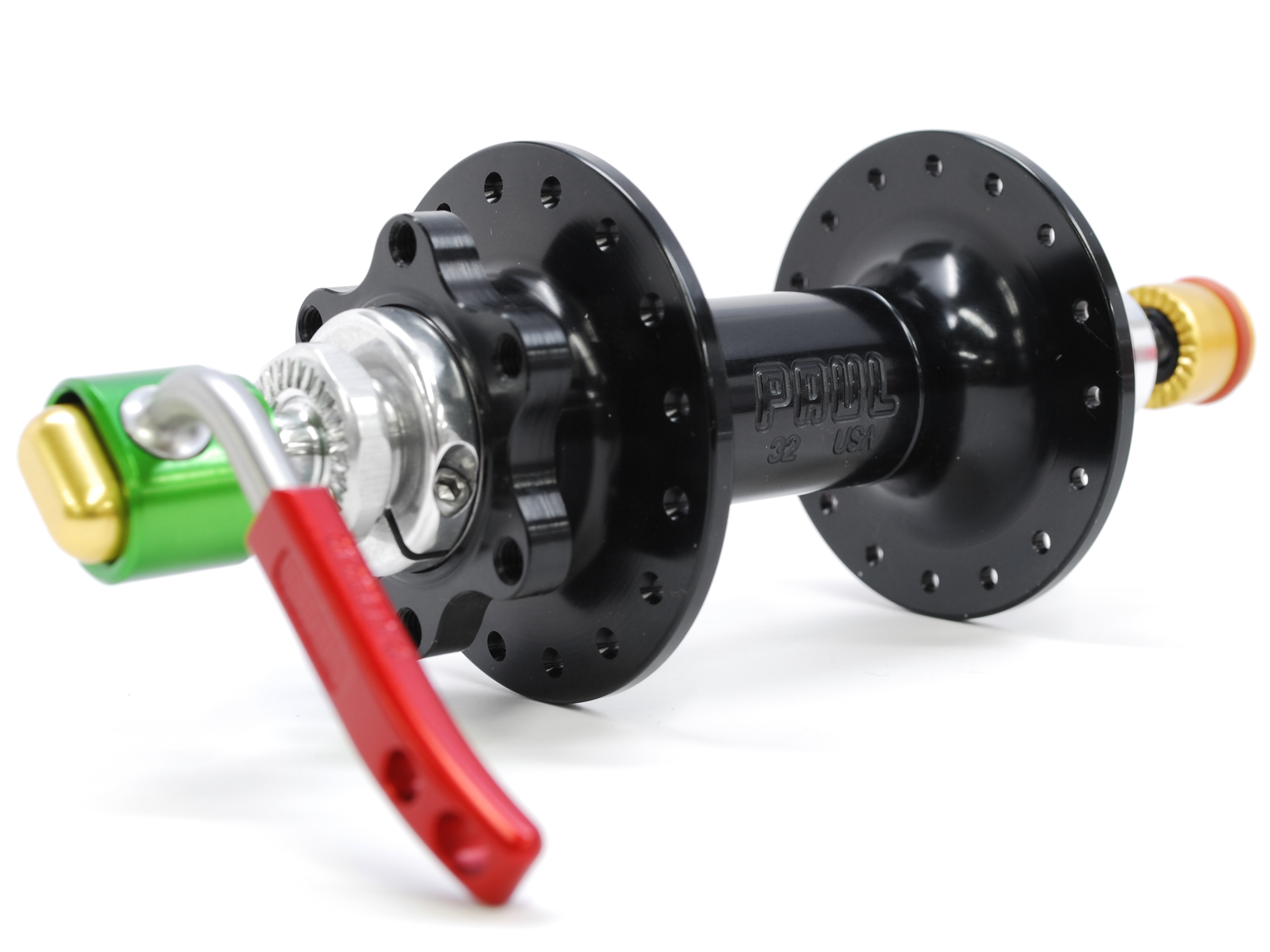

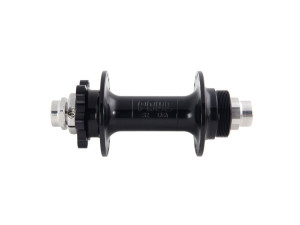

One of the best things about the latest iteration might be the super-stiff, super-light, flex-free, interchangeable 7075 Alloy axle. Available in 3 configurations: Quick-Release, Bolt-On, and Thru-Axle, it passes from dropout to dropout (unlike the flexy, non-adjustable caps so common on cheaper hubs that love to pop off and roll under your car or workbench every time you take your wheel off). In the future, if you switch frames or get a new bike, you can easily change out the existing axle for whichever style of attachment fits your new dropouts.
Fresh bearings and axle conversion kits are available for hub overhauls and rebuilds in the Hub Service Parts section.
The Disk WORD hub has freewheel threading on the drive side for standard BMX style freewheels, and a 6 bolt ISO rotor mount.
The flanges are canted towards the rim reducing spoke stress. Spoke hole counts are 24, 28 or 32, and the spoke holes are chamfered to reduce stress on the head and elbow of the spoke.
Made with pride in Chico, California.
