Axle Bolts

These axle bolts & washers are available as spare parts for any of our bolt-on front or rear hubs.

$27.00

Clear

Technical Information

  • Axle Bolt Torque
    21NM

Product Story

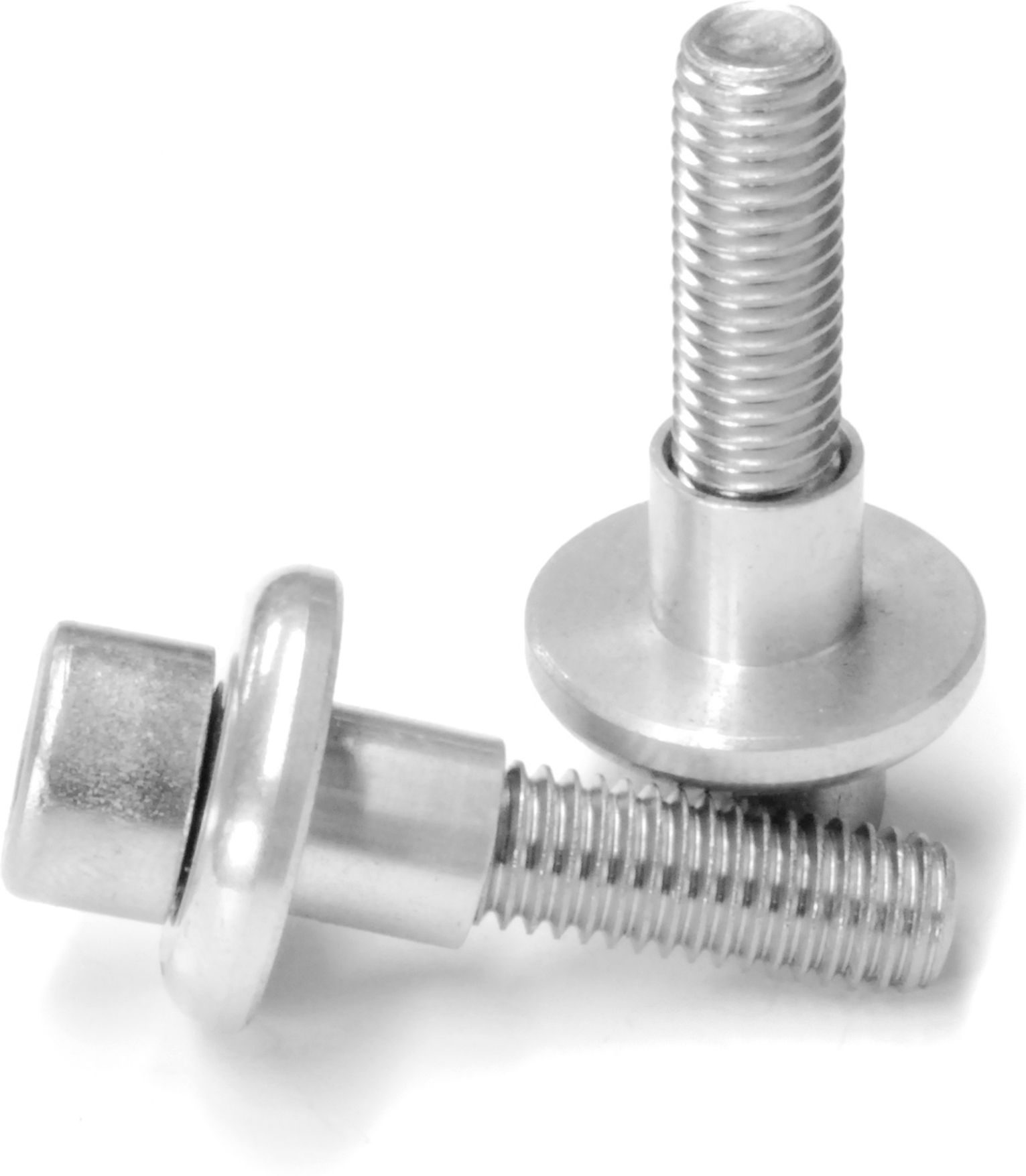

The bolts are stainless steel with their socket heads turned down on the lathe for a smooth radius and machined finish. They accept a 6mm hex wrench and have 8mm threads.

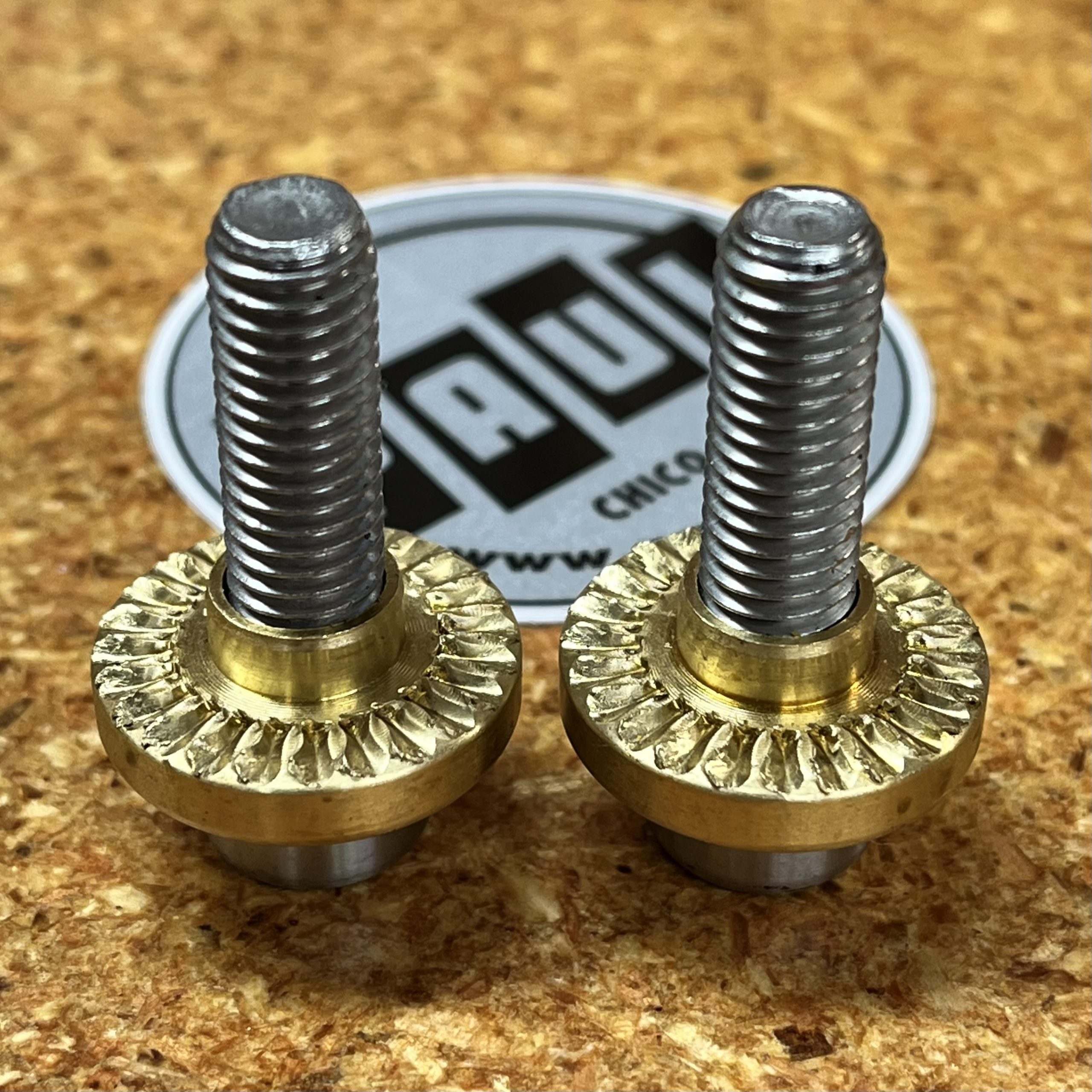

Small stainless steel washers are included with the axle bolts for front hubs. Larger steel washers are included with the axle bolts for High Flange Rear hubs, and large knurled brass washers are included with the axle bolts for WORD or Disk WORD hubs.

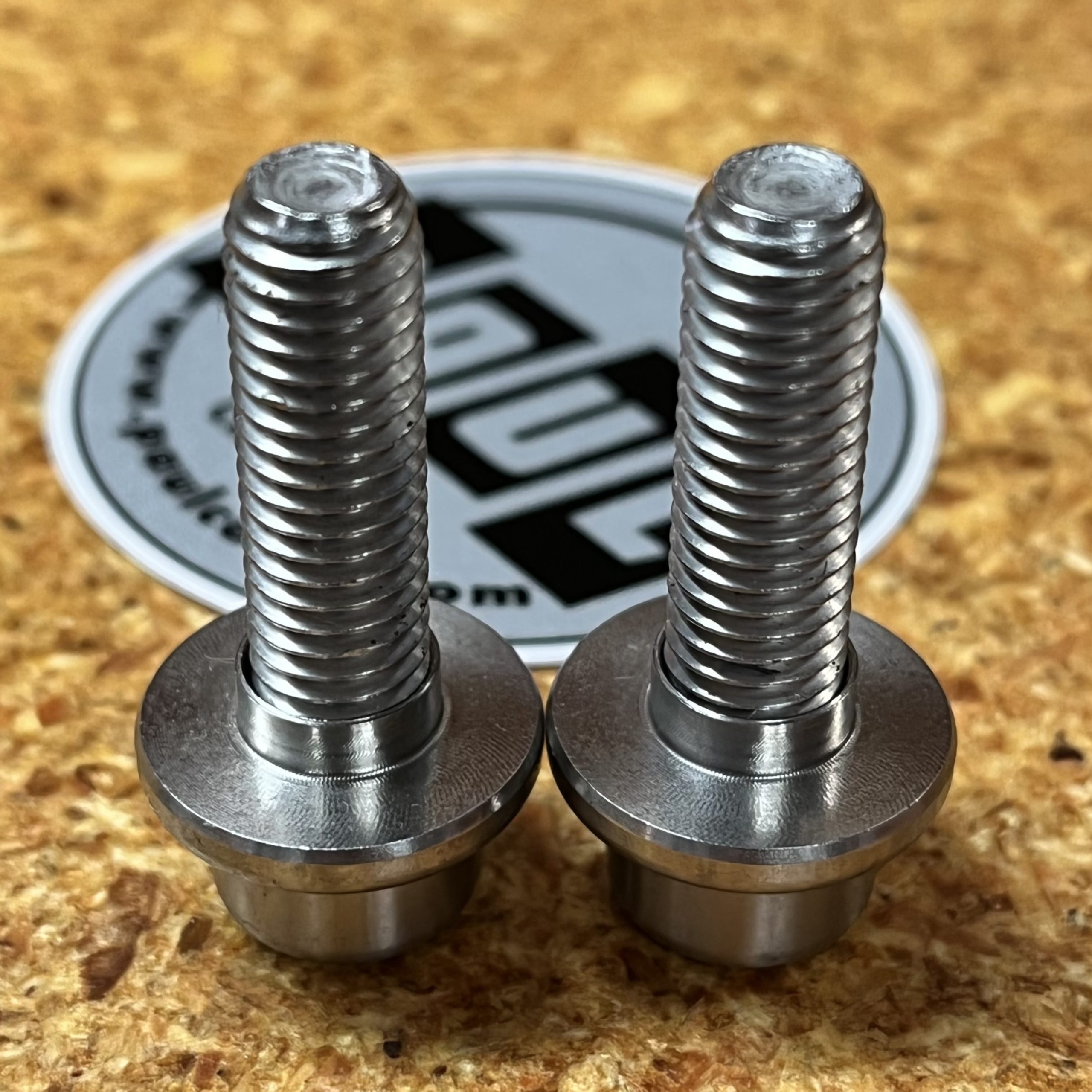

The standard axle bolts are 30mm long, but extra-long 35mm bolts are available for use with rear dropouts thicker than 10mm. They come with extra-long aluminum washers.
